Sieve analysis is often the first method chosen by businesses for particle sizing, because it is inexpensive, usably accurate, and a direct method, and therefore easy to validate.

Busy grinding facilities however , need to verify grind consistency, quickly,  efficiently, and frequently. Everything else that happens when preparing coffee after it has been ground, has to do with the particle size of the grind. If it isn't right, nothing else is going to be right.

As the frequency of testing grows however, so does the time, labor, mess, and noise.
Most of the original studies on grind size and extraction, were carried out using RoTap Sieve Shakers. Because of this many facilities are still equipped with them.
The first step in a sieve analysis test, is to weigh each of the sieves empty first. (TARE WEIGHT)

The sieves are then stacked on the sieve shaker, with the larger apertures at the top. Six sieves (ASTM 12,16,20,30,40, 50)
are commonly used. At the end of the rotating/tapping period, the sieve stack is dismantled, and each sieve is re-weighed
with the retained material, and converted to a percentage.

General care includes cleaning and calibrating the sieves.
​Prior to the advent of digital imaging technology, laser diffraction was the only place to go, if you wanted quick, and meaningful, non labor intensive results.
Laser diffraction, however, measures particles much differently, than sieve analysis.
If particles are perfectly round, the two technologies match up nicely, because their results are based on the assumption that a particle is round. But when particulates are not round, the similarity fades quickly.
Ground coffee particles, when sieved, are retained by the widest part of their width, and registered as that size. Laser diffraction measures angular variation in intensity of light scattered, as a laser laser beam passes through a dispersed particulate sample, and gives a better representation of surface area. Laser diffraction however, has been known to miscalculate plates and rods, and because it cannot detect shape,
cannot correlate to sieve analysis.
​The problem becomes how to change over to an alternative method, when it is based on different measurements than your current technology.
OCCHIO COFFEE-TRAK DYNAMIC PARTICLE ANALYZER
710 CT VIBRATING HOPPER, VACUUM, AND AIR JET DISPERSION
ESPECIALLY USEFUL WITH ESPRESSO
NEW TECHNOLOGY MAKES UPGRADING FROM SIEVE ANALYSIS A BREEZE
Dynamic Digital Image Analyzers work by dispersing particulates, and passing them by a high speed special camera, with a telecentric lens. Using proprietary monochromatic back lighting techniques, and collimated light beams, the images of particles are captured with near perfect definition, opening the door to particle shape .
MAXIMUM INSCRIBED DISC
In digital imaging, a virtual maximum inscribed disc, is used to determine a sieve correlation value.

The area in red, represents the dimension of the particle that would be retained in a sieve aperture.
For the analysis of coffee grinds, two parameters are of primary concern, AREA DIAMETER, and  MAXIMUM INSCRIBED DISC, although there are a large number of size and shape parameters available.
ESR WITH COFFEE-TRAK 2
Particle Analyzer

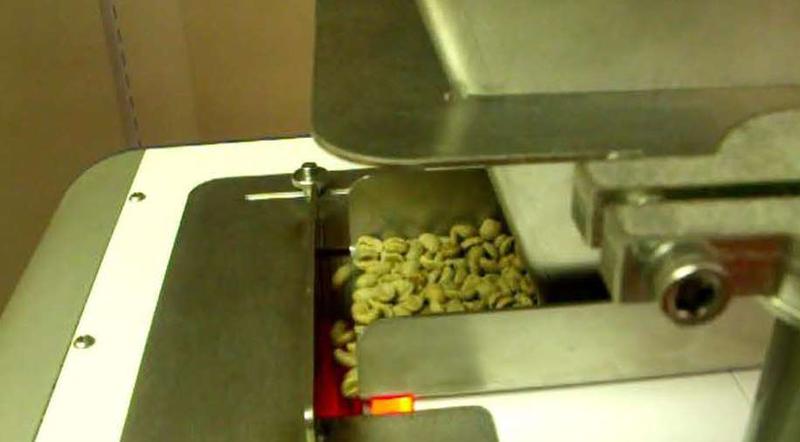

FOR COFFEE BEAN GRADING AND COFFEE GRIND SIZING
