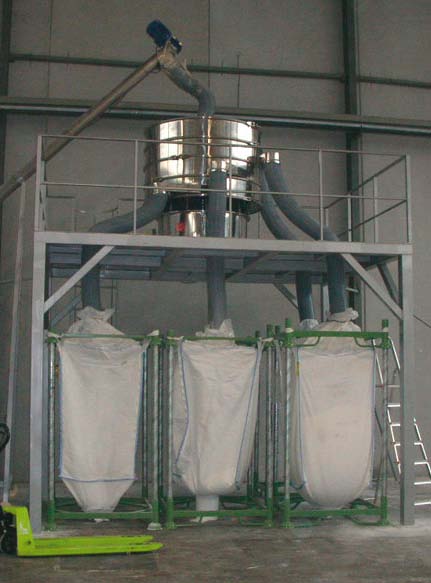

The ZEUS sieve shaker is suitable for large production volumes in industrial sieving.
It can be used for separation processes for:
Separation of solids in a liquid
Separation of different granulometries within the same product
Safety sieving for the elimination of foreign bodies
Homogenization of particles
It permits a production volume of 100 to 25,000 kg/h, depending on the product, the mesh opening size, and the feed flow to the machine.
Suitable for sieving from 36 microns to 25 mm.
Manufactured from AISI 304 stainless steel (or AISI 316 on request), it features
an imbalanced-weight motor which produces a three-dimensional motion, which makes the sieving of the product very effective.
Adjustment of the imbalanced weights allows the regulation of product behavior on the mesh and the sieving speed.
The bottom has a side outlet through which the obtained product can be unloaded.
Up to 4 sieves can be ordered with or without product outlet. In the case of choosing a
sieve with outlet, the sieving process can be automated: as the product enters the
sieve shaker, it also leaves via the sieve opening.
The ZEUS model allows up to 4 sieves, with which up to 5 product separations are obtained. The possible diameters are: 550, 800, 1200 or 1500 mm.
As an option it can be ordered with fast-closing clamps, lid, viewing windows in the lid and body, and wheels.
If the sieve shaker is going to be used in areas classified as being
potentially explosive environments, it is manufactured with ATEX materials, and a corresponding ATEX certificate will be provided.
No special floor or foundation is necessary for its installation.
FEATURES
• Sieve for large production volume.
• Highly robust. It can work for 24 hours.
• Highly versatile. Easy to operate.
• Sieves with or without product outlet (to choose).
• Can have wheels fitted
• Low maintenance.
Model Sieve Diameter Weight SELECT VOLTAGE
550 mm
800 mm
1200 mm
1500 mm
NUMBER OF SIEVES REQUIRED
SIEVE APERTURE SIZES REQUIRED (mm)
FULL PURCHASING QUOTATION
TENSION 400V @ 50 hz
460V @ 60 hz
SPEED 1500 rpm @ 50 hz
1800 rpm @ 60 hz
DIMENSIONS D 710 mm x H 755 mm
Based on 1 sieve
UP TO 25,000 kg per hour volume!
