PROFESSIONAL LABORATORY INSTRUMENTATION FOR COFFEE, TEA, COCOA AND AGRICULTURE
www.coffeelabequipmet.com
ALL RIGHTS RESERVED
Weems Va 22576
Tel (804) 435-5522 Toll Free (866) 244-1578 Fax (703) 991-7133
www.coffeelabequipment.com

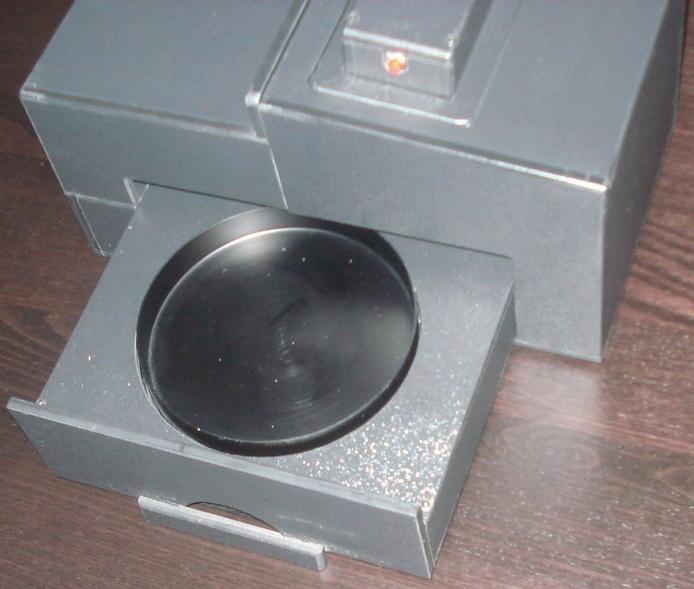

BENCHTOP COLORTRACK ROASTED COFFEE COLOR ANALYZER HULLER FOR PARCHMENT COFFEE
(HIGH SPEED / HIGH ACCURACY NON DESTRUCTIVE)
MOISTURE ANALYZERS THERMOGRAVIMETRIC (DESIGNED TO MATCH OFFICIAL METHOD-OVEN / DIRECT METHOD / DIRECTLY TRACEABLE NIST )
COLOR AND ROAST DEGREE ANALYZERS SINAR AGRPRO
MSRP $995
MEASURES MOISTURE IN GREEN, PARCHMENT, AND EVEN ROASTED COFFEE BEANS.
QUALITY EUROPEAN CONSTRUCTION
WITH SEALED MEMBRANE
KEYPAD FOR MOISTURE AND DUST RESISTANCE
MR DA8 COFFEE
FOR BURLAP COFFEE SACKS
MSRP $3,995
SINAR LSA 8100
BENCHTOP MOISTURE ANALYZER FOR COFFEE BEANS, AS WELL AS LARGER BEANS LIKE ALMONDS
MSRP $2,895
THE SINAR DRYPRO
INLINE REAL TIME MOISTURE ANALYZER FOR CONTINUOUS MEASUREMENT FUNCTIONS.
MSRP $9,995
PMR SERIES LOD ANALYZER
VALUE PRICED AND FULL FEATURED
THERMOGRAVIMETRIC ANALYZER
FOR MOISTURE
DRAMATICALLY REDUCED TESTING TIME REDUCED OPERATOR TRAINING A REQUIREMENT
IN ANY COFFEE QC DEPARTMENT!
THE COFFEE LABORATORY HAND SIEVE SHAKER IS GREAT FOR QUICK VISUAL ANALYSIS OF COFFEE GRIND SIZE. ADVANTAGES OF THERMOGRAVIMETRICS
ENDECOTTS M200 VIBRATORY SIEVE SHAKER FOR BEANS & GRIND SIZING
WEIGHS ONLY 35 lbs. AND HAS A 10" FOOT PRINT.
MODEL 901 BATTERY OPERATED PORTABLE OXYGEN ANALYZER MODEL 902D BENCHTOP ANALYZER FOR OXYGEN AND CARBON DIOXIDE IN GAS FLUSHED (MAP) PACKAGES. THE MODEL 905 IS A BATTERY OPERATED, PORTABLE OXYGEN ANALYZER COLOR ANALYZERS, CONSISTENCY, MOISTURE METERS, SAMPLING EQUIPMENT, HAND SCREENS, SAMPLE ROASTERS, WEIGHING SCALES, OXYGEN HEADSPACE, WATER ACTIVITY, COFFEE GRIND SIZE, LABWARE, VISCOMETERS, PARCHMENT HULLERS
THE HP23AW PORTABLE WATER ACTIVITY METER HAS 2 PROBE INPUTS. PORTABLE & ACCURATE. GIVES INDICATION OF FRESHNESS & LONGEVITY. OPTIONAL SOFTWARE PACKAGE
DYNAMIC PARTICLE CHARACTERIZATION WITH DIGITAL IMAGING TECHNOLOGY
COFFEE PRO MOISTURE MAC
TESTS FOR MOISTURE IN GREEN & PARCHMENT HIGH MOISTURE
COFFEE AND COCOA. MSRP $379
SINAR BEANPRO
MSRP $3,295
COFFEE MOISTURE & DENSITYANALYZER
MENU DRIVEN OPERATION
BUILT IN CALIBRATION INSTRUCTIONS
ALL COFFEE TYPES
ACCURATE ENOUGH FOR R&D.
FAST ENOUGH FOR HIGH VOLUME QC. NO SAMPLE PREPERATION. WORKS GREAT ON ALL COFFEE TYPES. +/- .1 % ACCURACY OBTAINABLE.
DESCRIPTION (FOR TDS APPLICATION, USE .0001 gm READABILITY
PMR MOISTURE BALANCE DIGITAL 50 gm CAPACITY ACCURACY .001 %
PMR MOISTURE BALANCE DIGITAL 50 gm CAPACITY ACCURACY .0001%
PMR MOISTURE BALANCE DIGITAL 110 gm CAPACITY ACCURACY .001%
PMR MOISTURE BALANCE DIGITAL 210 gm CAPACITY ACCURACY .001%
PMR SERIES BALANCE PANS 9CM 200 COUNT
SELECT HEAT SOURE POWER SUPPLY
MEASURE MOISTURE DIRECTLY
FOR ALL COFFEE TYPES.
CAN ALSO BE USED FOR DIRECT METHOD TDS DETERMINATION
SAMPLE SPECIFIC HEAT SOURCE
3 CHOICES AVAILABLE:
HALOGEN - SHORT WAVE IR (EXAMPLE:SUGAR)
IR EMITTER- MID WAVE IR (BEST FOR COFFEE / TEA)
METAL- LONG WAVE IR
(FOOD APPLICATIONS THAT SPECIFY NO GLASS)
When using a moisture analyzing balance, care has to be
taken to ensure it is equipped with the most efficient heat source.
Less sample degradation, and quicker results.
8/64th"
9/64th"
10/64th"
11/64th"
12/64th"
13/64th"
14/64th"
15/64th"
16/64th"
17/64th"
18/64th"
19/64th"
20/64th"
21/64th"
PAN
BOX 500 BLUE
BOX 500 RED
BOX 500 BLACK
BOX 500 WHITE
ATM L3P SONIC SIFTER
SIEVE ANALYSIS RESULTS IN TWO MINUTES. SMALL SAMPLE AMOUNT. SILENT
SINAR DRYPRO CONTROLLER RS 232 OUTPUT
SINAR DRYPRO CONTROLLER 4-20 ma or 2-10 V DC OUTPUT
COFFEE LAB PRICING
Discounts for government agencies,
co-ops, and resellers
Technical Sales & Support
Telephone (804) 435-5522
Toll Free (866) 244-1578
Hours 9 AM - 6 PM EST M-F
(MOST ACCURATE METHOD FOR PARTICLE SIZING)
MSRP $49,995
COFFEE LABORATORY DIGITAL IMAGING SOFTWARE FOR COFFEE
MEASURES COLOR, SIZE, SHAPE, AND ACTUAL BEAN DENSITY
COLOR DISPLAYED IN RGB FORMAT
NEW LOW COST FREIGHT OPTIONS FOR EXPORT!
IMPORTANT: ALL FIELDS MUST BE FILLED IN FOR FREIGHT QUOTATIONS. ENTER NA IF NOT APPLICABLE.
DELIVERY TO NEAREST AIR/SEA PORT ONLY AVAILABLE IN SOME AREAS
Water Quality Meter pH Kit – 655 850086
Includes everything needed for immediate field use as a pH meter: Water Quality Meter (which already has a built in BNC connector); epoxy body sealed reference combination electrode with a BNC connector and a 2½" cable; pH Probe; ATC Temperature Probe; instructions, pH buffers 4, 7 & 10, de-ionized water; calibration tool; and a 9V battery. All of these are contained in the meters own slim but protective hard-shell, foam-lined case.
Kit Dimensions: 11" × 9½" × 2" (279 × 241 × 51 mm)
AVAILABLE
12 SCREEN CABINET
COFFEE BEAN GRADING SOFTWARE
BENCH TOP DUAL ANALYZER
NEW! LOW COST / DURABLE
WORKS WITH UP TO 4 PROBES. COMES WITH DATA LOGGING SOFTWARE

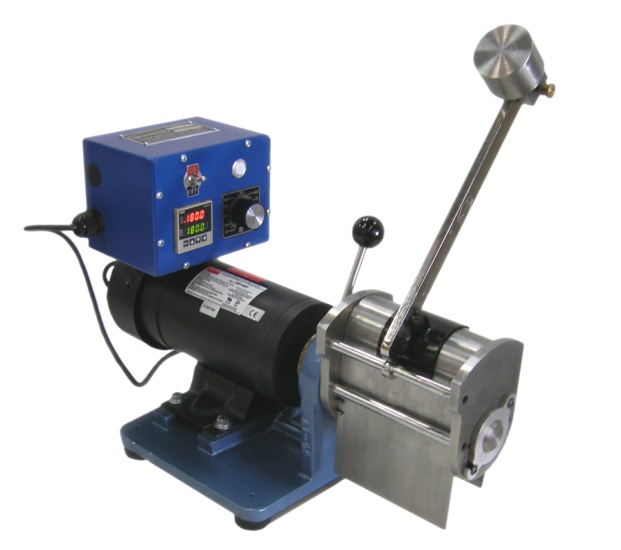

The Parchment Coffee Sheller is a great aid in the inspection of samples in the coffee processing laboratory.
In less than 5 minutes, a sample of 250g of pergamino coffee will be converted into oro (gold) coffee in order to determine quality and rendition.
All contact parts in the sheller chamber are anti-corrosive material. Time (0-180 seconds), speed (0-1725 RPM) and shelling pressure are adjustable according to your needs.
EQUIPPED WITH INTERNAL FAN
AND DATA LOGGING THERMOCOUPLE
EQUIPPED WITH SEPARATE CHAFF CYCLONE
NEAREST AIRPORT, OR SEA PORT
CLICK SUBMIT AFTER ALL SELECTIONS ARE MADE
LSG 33 COFFEE LAB GRINDER
Dimensions:
Height: 660 mm, Width: 180 mm, depth: 425 mm
Weight: 26 kg
Disks diameter: 84 mm
Bean hopper capacity: 2.0 kg Coffee beans
Electrical Specifications (single phase):
220V/50Hz Maximum current 4.5 Ampere
(220V/60Hz Maximum current 5 Ampere)
Grinding capacities:
>450gr/min. @ #3 setting (espresso)
Powder size range: 100 micron-1000 micron
KINEMATICA POLYMIX
MFC 90 D GRINDER/MILLER
Motor Type, Power 3-phase AC Motor
up to 1000 W (input) / up to 600 W (output)
Working volume (funnel) approx. 300 ml (volume of the funnel)
Display LED
Supply Voltage 230V / 50 Hz or 100-120V / 60 Hz
Speed range 50 - 6‘000 rpm
Noise emission (drive only) < 70 dB(A) bei 6‘000 rpm (w/o load)
Ambient condition 0 - 40°C, max. 95% rel. humidity
Protection class IP 20
Dimensions / Weight (drive) 251 x 325 x 480 mm (LxBxH) / ca. 12 kg
Standards EMC according IEC/EN 61000-6-2 / EN 61000-6-3
Safety according IEC/EN 61010-2-51
SPECIFICATIONS
Height 7.5" Diameter 10"
Weight 37.5 lbs
Power Supply
230V 50Hz 80VA
115V 60Hz 60VA
ESR WITH COFFEE-TRAK 2 Particle Analyzer
FOR COFFEE BEAN GRADING AND COFFEE GRIND SIZING
SPECIAL DISPERSION SIEVE FOR COFFEE GRINDS (CLICK IMAGE)
VIRTUALLY SORTS COFFEE BEANS AND GRINDS BY SIEVE SIZE OR BY
TOTAL SURFACE AREA
MSRP $45,995
COFFEE-TRAK High Speed Particle Analyzer

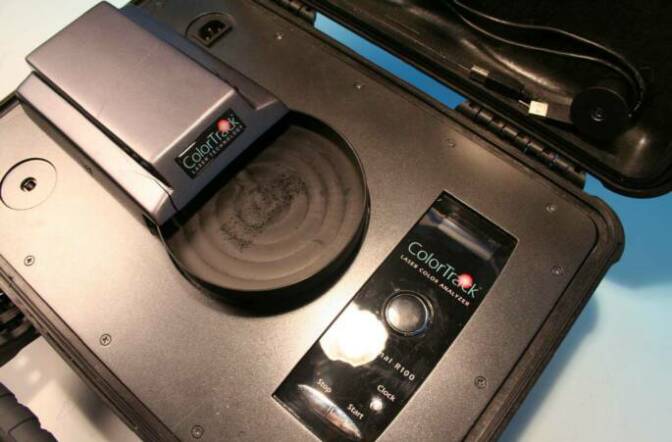

The CM-100 ROAST DEGREE ANALYZER IS INEXPENSIVE, HIGHLY ACCURATE, AND TRULY PORTABLE. WORKS FOR UP TO 6 HOURS ON A SINGLE CHARGE. COMPLETE WITH PC DATA LOGGING SOFTWARE
CM-100 ROAST DEGREE ANALYZER
WON BEST NEW PRODUCT AWARD AT SCAA.
MODIFIED REAL TIME COLOR ANALYZER TAKES 200,000 READINGS IN 20 SECONDS.
HP23AW PORTABLE WATER ACTIVITY METER
HC1 BENCHTOP WATER ACTIVITY METER
MAHLKONIG GUATAMALA 710 STANDARD
Small & Powerful:
• Suitable for extensive use in coffee shops,
depots and coffee roasters
• Also available as self-service version
HOPPER CAPACITY - 500g / 1.1 lb
DIMENSIONS - 22 cm x 62 cm x 35 cm / 8.7" x 24.4" x 14.1"
NET WEIGHT - 19 kg / 42 lbs
VOLTAGE FREQUENCY PHASES -
220 - 240 V 50/60 HZ SINGLE PHASE
100 - 115 V 50/60 HZ SINGLE PHASE
ROTATIONS PER MINUTE - 2850 @ 50 HZ 3400 @ 60 HZ
MOTOR RATING - 1100 WATTS
CURRENT CONSUMPTION - 5.8 AMPS @ 230 V
12 AMPS @ 110 V
SPECIFICATIONS
COPPER AND BRASS CONSTRUCTION
Size Number of Pockets: 38
Supplied with two brass sample pans.
SAMPLE DIVIDERS / HULLERS
Available wit either 1/4" or 1/2" slots
STAINLESS STEEL SAMPLE SPLITTER
DIMENSIONS 132 mm x 110 mm x 156 mm
*MSRP - ADDITIONAL FREIGHT CHARGES MAY APPLY
MSRP NO PRINT $2.95 ea @ 500
ADD 1 COLOR LOGO .50 ea
ADD 2 COLOR LOGO .80 ea
ADD 3 COLOR LOGO .95 ea
ADD 3d EMBOSSED .45 ea

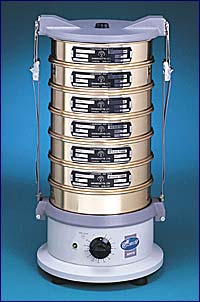

FILTRA FTL0200 HEAVY DUTY DIGITALSIEVE SHAKER
Features a digital panel with power regulation, sieving time control and adjustments to enable continuous or intermittent sieving.
SINAR SP 6600 MOISTURE ANALYZER PROBE
MSRP $2,895
• Easy to use – no sampling, weighing or grinding, simply
insert and read
• Fast – instant digital readout of moisture and
temperature
• Robust – rugged construction with no moving parts
• Accurate – many readings can be taken in a few
minutes to give a truly representative picture of moisture
in bags or in bulk
Refractometers are used in many industries to measure concentrations of various substances.
Examples are:
CONCENTRATION OF DISSOLVED SOLIDS IN COFFEE CONCENTRATION OF PROPYLENE GLYCOL IN COOLANT CONCENTRATION OF ACID IN BEER AND WINE CONCENTRATION OF FRUCTOSE AND WATER IN HONEY 678 4533 ATAGO PAL COFFEE REFRACTOMETER
FOR BRIX / TDS MEASUREMENT
Coffee Laboratory HAND SCREENS
Quality constructed, using premium kiln dried wood. The finished wooden frames are designed to stack on top of each other.
Round or oblong (Peaberry) hole apertures are custom punched with .004" tolerances, in to premium 20 gauge sheet metal plate, using computer numerical control (CNC) machine tools, eliminating partial holes.
Labels are clearly marked in 64th" increments, for agricultural grading applications, including coffee beans.
SAMPLE ROASTERS
NEXU INTERNATIONAL
Powerful Combination:
• Exceptionally robust grinder with high grinding capacity
• Suitable for different grinding goods and finesses.
as e.g. Filter- & Espresso grinding, turkish-fine grinding
TECHNICAL DATA
HOPPER CAPACITY - 998g / 2.2 lb
DIMENSIONS - 23 cm x 77 cm x 41 cm / 9.0" x 30.0" x 16.1"
NET WEIGHT - 24 kg / 52.9 lbs
VOLTAGE FREQUENCY PHASES - 100-115 V
50 / 60 HZ SINGLE PHASE
: 86 cm Height x 38 cm dia (Approx.)
