The CM-200 is designed to measure the roast
degree and roast uniformity, for both whole bean and ground beans. It can also analyze the distribution of coffee grind size.

It has a user-friendly interface, and provides accurate performance. SCAA Gourmet numeric scales are displayed corresponding to the result (Light, City, Italian, etc).

The CM-200 also provides information as to the color uniformity.
Product Specifications
Working Time 8 hours
High Accuracy
Housing Material ABS & Aluminum
Dimensions L 95 mm W 95 mm H 137 mm

Weight (Main unit)  38 grams
Measuring area 72 cm2
Panel size 2.8 inch TFT Color Panel
Camera High Resolution CMOS Camera
Light source Infra Red LED
Log 100 Records

Power consumption < 5W
Charging Power 5V, 0.5 A
Charging method micro USB Port
Battery capacity 3.7V/230 0 mAh Lithium battery
Features
1. NIR photometer indicates the degree of caramelization
    for roasted coffee beans or ground coffee.
2. CCD Camera for recognizing grind size and roast uniformity
3. No warming-up is needed
4. Auto Bean Type recognition
5. Long Battery working time (up t o 8 hours of continuous use)
6. Supports using while battery is charging
7. Support Auto-power off setting
8. Stores up to 100 records of roast color/uniformity/grind size
9. Support both SCM and Common name
10.Self-calibration feature

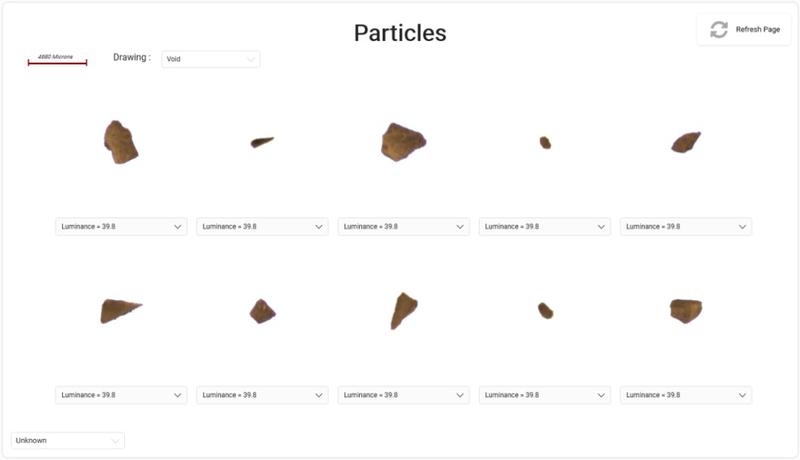

Utilizing a high resolution CMOS Camera, the CM-200 can also be used to analyze coffee grind size, to help with grinder calibrations.
