LABORATORY OVENS
Tell a friend about this page
OVEN CATALOGUE
MOISTURE, PARTICLE CHARACTERIZATION, COLOR, AND SAMPLING
Low temperature electric ovens for thermal processing to 350 c.
High quality construction utilizing advanced technologies.
Single and multiple chambers, natural convection or forced air.
Quality Management System certified by
Bureau Veritas Quality International in
compliance with ISO 9001:2008 / LST
EN ISO 9001:2008 standards
The official method for moisture determination in green coffee is listed under ISO 6673, and specifies the sample to be heated in a forced air,  low temperature oven,  for a period of 16 hours.
HOME
CONTACT US
PRODUCTS
RESOURCES


Technical Sales & Support
Telephone (804) 435-5522
Toll Free    (866) 244-1578
Hours         9 AM - 6 PM  EST   M-F
CHAMBER OVENS AVAILABLE UP TO 350 °C

Economical low temperature electric ovens that are intended for the thermal processing of various materials and parts up to a temperature of 350 °C. The products can be used in scientific laboratories, educational institutions, medicine, and industry.
TEMPERATURE CONTROLLER OMRON E5CC (STANDARD)

TEMPERATURE CONTROLLER OMRON E5CN-HT

TMPERATURE CONTROLLER EUROTHERM 3216

TEMPERATURE CONTROLLER EUROTHERM 3208

PC CONNECTION AND SOFTWARE SNOL V1.12

OTP (OVER TEMP PROTECTION)

TIMER

BUZZER (AUDIBLE SIGNAL)

WINDOW 258 mm x 250 mm

WINDOW 320 mm x 318 mm

ADDITIONAL HOLE WITH COVER 50 mm
NATURAL CONVECTION

680 24200 LSP01        200                          1/1                                                       300         380         200                            400     515      410

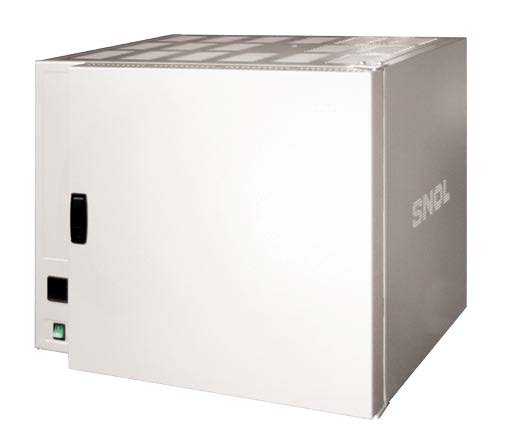

680 67350 LSP01        350                          2/1                                                       390         445         390                            685     625      615

680 67350 LSN01        350                          2/1                                                       390         445         390                            685     625      615

FORCED AIR

680 20300 LSN11        300                          1/1                                                       240          280        340                            460     680       640

680 60300 LSN11        300                          2/1                                                       380          380        420                            600     760       720

680 120300 LSN11      300                          2,2/1                                                    550          400        580                            750     780       880

680 220300 LSN11      300                          4/1                                                       730          500        620                            930     880       915

680 420300 LSN11      300                          6,2/3                                                  1000          500        860                          1200     930       1200

680 58350 LSP11        350                          2/1                                                       390          380        360                            685     675        615

680 58350 LSN11        350                          2/1                                                       390          380        360                            685     675        615

680 200200 LSP11      200                          2/1                                                       710          610        460                          1040     780        775

680 200200 LSN11      200                          2/1                                                       710          610        460                          1040     780        775
MODEL                       MAX TEMP ºC      POWER kW / PHASE NUMBER
OMRON E5CC

1 PROGRAM 2 STEP

CONTROL METHOD PID   A PID (proportional-integral-derivative) controller calculates an error value as the difference between a
measured process variable and a desired set point. The controller attempts to minimize the error by adjusting the process through
use of a manipulated variable. In the absence of knowledge of the underlying process, a PID controller has historically been considered
to be the best controller.
OMRON E5CC

8 PROGRAM 32 STEPS EACH

EUROTHERM 3216

1 PROGRAM 2 STEPS
EUROTHERM 3208

5 PROGRAM 8 STEPS EACH
SELECTION OF PID CONTROLLERS
# 680 24200LSP01
CONVECTION

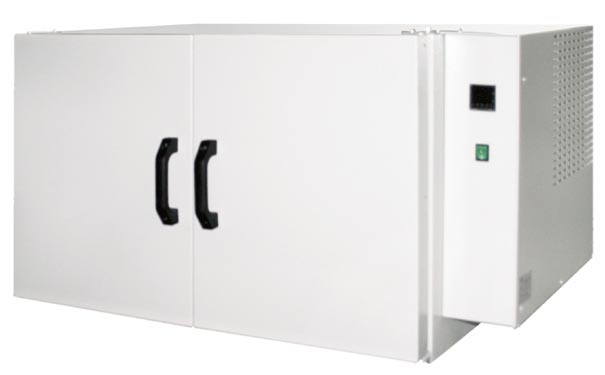

# 680 200200LSN11
FORCED AIR

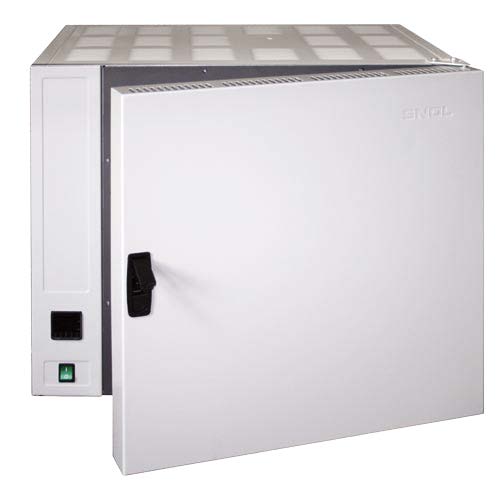

# 680 58350LSN11
FORCED AIR

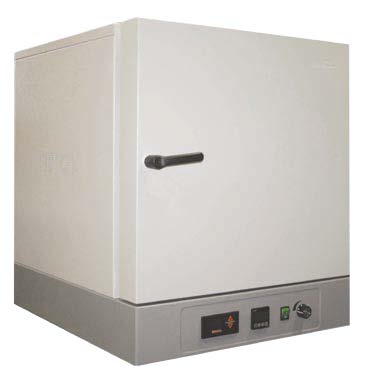

# 680 60300LSN11
FORCED AIR

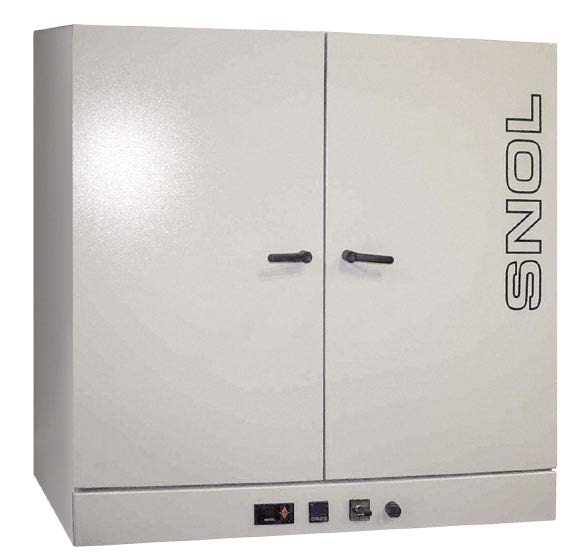

# 680 420300LSN11
FORCED AIR
OPTIONS
QTY
COMPANY NAME
ADDITIONAL INFORMATION
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
COMPANY NAME
STREET / PO BOX
CITY
STATE / MUNICIPALITY
POSTAL CODE
COUNTRY
BILL TO ADDRESS
SHIP TO ADDRESS
FIRST NAME
LAST NAME
EMAIL
PHONE
QUOTATION REQUEST     (MADE TO ORDER 4-6 WEEKS)
ALL RIGHTS RESERVED
589 Rappahannock Drive WhiteStone Va 22578
Tel (804) 435-5522 Toll Free (866) 244-1578 Fax (703) 991-7133
www.coffeelabequipment.com
AVAILABLE ONLINE
  CHAMBER DIMENSIONS (mm)           OUTSIDE DIMENSIONS (mm)
