ROTRONIC C1 AW  WATER ACTIVITY METER
ALL RIGHTS RESERVED
589 Rappahannock Drive WhiteStone Va 22578
Tel (804) 435-5522 Toll Free (866) 244-1578 Fax (703) 991-7133
www.coffeelabequipment.com
GENERAL SPECIFICATIONS:

Stand alone system with ultra fast water activity measurement of up to 4 product samples simultaneously

AwQuick Mode - accelerated water activity measurement in typically 5 minutes

AwE Mode: conventional water activity measurement with automatic detection of equilibrium

Includes 2 sizes of sample holders and disposable sample cups, humidity calibration standards, etc.

Includes the HW4 software for the capture of end values, live graph, data logging, etc.

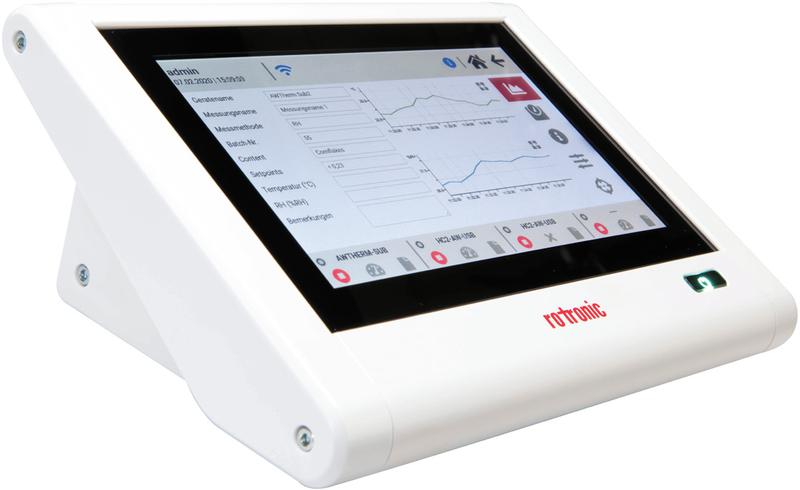

HygroLab C1 bench-top meter accepts a large choice of probes,
suitable for the direct measurement of products in bulk

ON/OFF:
Turns the instrument
on or off.
UP / DOWN:
Selects the probe being displayed
When the menu is active, use to navigate the menu, make a selection or change a value
ENTER:
When the menu is active, use to confirm the selection of a menu item, effect a change of settings and confirm any change

In the Aw Mode, use to start, hold or stop the water activity measurement function
MENU: Activates the internal menu. Press this key again to go back to the previous sub-menu or to exit the menu
BUY ONLINE
QTY           REF#                                    DESCRIPTION
648 PS14                                 SET OF 100 PLASTIC SAMPLE CONTAINERS 14 mm HEIGHT

648 PS40                                 SET OF 100 PLASTIC SAMPLE CONTAINERS 14 mm HEIGHT

648 WP40                                SAMPLE CONTAINER HOLDER FOR PS14 / PS40 V2A STEEL 40mm HEIGHT

648 WP40TH                            SAMPLE CONTAINER HOLDER FOR PS14 / PS40 BRASS NICKEL PLATED 40mm HEIGHT

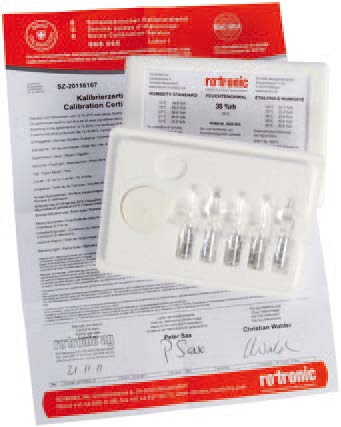

HUMIDITY STANDARDS

EA00-SCS                                0.5 %RH

EA05-SCS                                5 %RH

EA10-SCS                                10 %RH

EA20-SCS                                20 %RH

EA35-SCS                                35 %RH


EA50-SCS                                50 %RH

EA60-SCS                                60 %RH

EA75-SCS                                75 %RH

EA80-SCS                                80 %RH

EA95-SCS                                95 %RH


WP40
HOME
CONTACT US
PRODUCTS
RESOURCES

Technical Sales & Support
Telephone (804) 435-5522
Toll Free    (866) 244-1578
Hours         9 AM - 6 PM  EST   M-F

Tell a friend about this page
MOISTURE, PARTICLE CHARACTERIZATION, COLOR, AND SAMPLING
APPLICATION SPECIALISTS
COMPANY NAME
ADDITIONAL INFORMATION
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
COMPANY NAME
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
BILL TO ADDRESS
SHIP TO ADDRESS
FIRST NAME
LAST NAME
EMAIL
PHONE
QUOTATION REQUEST
BROCHURE
​648 WP40S – (QTY 1) Dual 14mm/40mm sample cup holder (with insert)

648 PS14 – (QTY 100) disposable sample cups, 14mm deep (0.55")

648 PS40 – (QTY 100) disposable sample cups, 40mm deep (1.57")

648 HW4PQUICK – (QTY 1) Software and USB connecting cable to PC

EA00 - Humidity Standard 0.5%RH (Five vials per box)

EA10 - Humidity Standard 10%RH (Five vials per box)

EA35 - Humidity Standard 35%RH (Five vials per box)

EA80 - Humidity Standard 80%RH (Five vials per box)

648 AC1211 (QTY 1) AC power adapter 100-240 VAC / 12 VDC
​WP40TH
648 HYGROLAB C1 SET HYGROLAB C1 BENCH TOP WATER ACTIVITY KIT
SET INCLUDES
TECHNICAL  SPECIFICATIONS:

Housing material ABS, Aluminum
Housing protection grade IP21
Overall dimensions 236 x 172 x 70 mm (9.3" x 6.8" x 2.8")
Weight 1000 g (2 lb 0.5 oz)

CONFORMANCE TO STANDARDS:

CE / EMC immunity
EMC Directive 2004/108/EG:
EN 61000-6-1: 2001, EN 61000-6-2: 2005
EN 61000-6-3: 2005, EN 61000-6-4: 2001 + A11
Solder type Lead free (RoHS directive)
FDA / GAMP directives Compatible

ENVIRONMENTAL  LIMITS

Storage and transit -
Operating limits at electronics -
condensing
Temperature limits at probe Depends on probe model
Maximum humidity at probe
100 %RH up to 80 °C (176 °F)
75 %RH at 100 °C (212 °F)
45 %RH at 125 °C (260 °F)
15 %RH at 150 °C (302 °F)
Maximum air velocity at probe 20 m/s (3,935 ft /min)
Critical environments Humidity sensor: as per DV04-14.0803.02 - Critical chemicals
