The BEANPRO Moisture Analyzer is a capacitance based analyzer that has 25 pre-programmed channels, used most commonly to measure moisture levels in free flowing agricultural commodities. It is unique in that it allows the user to access the data, and programming functions, protecting proprietary moisture calibrations.

Used by over 60% of the coffee industry to accurately measure the moisture in beans and coffee grinds at the various stages of processing, as well as seed companies, animal feed manufacturers, grain companies, and more.

Oven tests (Loss On Drying) are the primary method by which many materials are evaluated for moisture content. The process of heating a sample at low temperatures, and weighing it until the rate of drying changes, and the critical moisture point is reached, may  take many hours to complete, making it impractical for many applications.

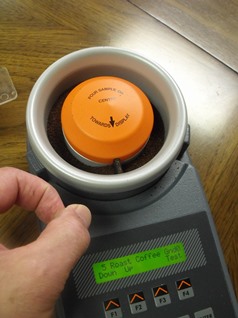

SINAR AP BEANPRO AUTOMATIC MOISTURE,TEMPERATURE, DENSITY ANALYZER
SINAR BEANRPO
MENU DRIVEN
COFFEE MOISTURE & DENSITY ANALYZER
Calibrations can be transferred between
different Sinar Instruments, including
this SINAR LSA for Cocoa
A FEW SINAR CUSTOMERS

Boyd Coffee
Kona Kava
Elkins Coffee
Dallis Brothers
S & D Coffee
Torke Coffee
Haitian Bleu
Armenia Coffee
Melitta Coffee
Nairobi Tea & Coffee
Kraft General Foods
SGS Inspection Services
Eight O’clock Coffee
Blue Mountain
Maxwell House
Nestle Beverage
Starbucks Coffee
Coffee Connection
Green Mountain Coffee
Pioneer Mill Company
Ireland Coffee
Community Coffee
Ugacof
Inter Trade Coffee
Nestec
MP Mountanos
F. Gavina & Sons
Park Corporation
Hillside Coffee
Barnie’s Coffee & Tea
Cargills
Premium Coffee
Atlanta Coffee Roastery
Bros Gourmet Coffee
ALL RIGHTS RESERVED
589 Rappahannock Drive WhiteStone Va 22578
Tel (804) 435-5522 Toll Free (866) 244-1578 Fax (703) 991-7133
www.coffeelabequipment.com
COFFEE MOISTURE, PARTICLE CHARACTERIZATION, COLOR, AND SAMPLING
620 6070                SINAR BEANPRO    Complete with carrying case, wheat calibration sample,
                               hopper assembly, and computer connection cables.

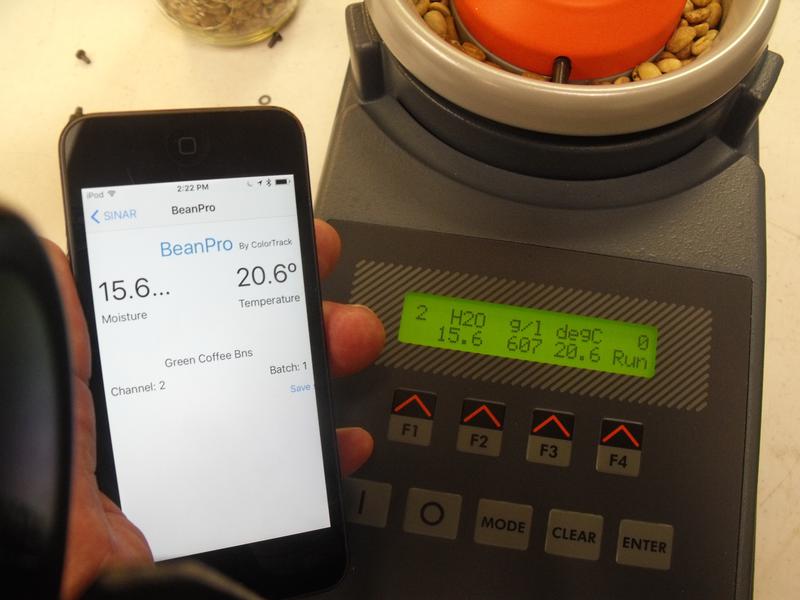

620 IOS                  IOS OPERATING SYSTEM FOR DATA LOGGING USING
                               CELLULAR OR TABLET TECHNOLOGY

620 19006213        REPLACEMENT BATTERY HOLDER

620 19006352        CALIBRATED WHEAT SAMPLE IN GLASS JAR WITH
                               MINIMUM HEADSPACE (REQUIRED TO CALIBRATE INSTRUMENT)

620 19006154        COMPLETE REPLACEMENT HOPPER ASSEMBLY

620 19006917        RS232 TO SERIAL PORT CABLE FOR COMPUTER CONNECTION

620 19006917B     SERIAL PORT TO USB CONVERTER
HOME
CONTACT US
PRODUCTS
RESOURCES


Technical Sales & Support
Telephone (804) 435-5522
Toll Free    (866) 244-1578
Hours         9 AM - 6 PM  EST   M-F
BROCHURE
INTERNAL BALANCE
AUTOMATIC MOISTURE AND DENSITY MEASUREMENT
RECOGNIZED WORLDWIDE
BUY ONLINE
QTY            REF#                          DESCRIPTION
COMPANY NAME
ADDITIONAL INFORMATION
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
COMPANY NAME
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
BILL TO ADDRESS
SHIP TO ADDRESS
FIRST NAME
LAST NAME
EMAIL
PHONE
QUOTATION REQUEST
PACKED DIMENSIONS 22" x 18" x 6"
WEIGHT 13 lbs
Product Features

Accuracy: Typically 0.3 STD for %mc and 1.0 g/l STD for density

Repeatability: 0.05 to 0.15 STD for %mc

Measurement Range: 1 to 35% mc dependant on application

Operating Environment: 0 to 55 °C

Dimensions: 325mm x 164mm x 120 mm

Weight: 2.2 kg

Power Supply: 4 x C size 1.5V Alkaline Batteries

Sample Cell: 290 ml Volume, 50 – 240g

Printer Output: RS232C, 300 or 4800 baud

Processor: Intel 8DC31 microprocessor

Memory: 35K EPROM, 32K RAM
USED BY MORE THAN 60%
OF THE COFFEE INDUSTRY
SEPARATE CHANNELS ARE AVAILABLE FOR DIFFERENT GRIND SIZE DISTRIBUTIONS
STANDARD CALIBRATIONS

GREEN COFFEE
DRIED CHERRY COFFEE
PARCHMENT COFFEE
ROASTED WHOLE BEAN COFFEE
ROASTED GROUND COFFEE
DECAF COFFEE
ROASTED GROUND COFFEE
PRODUCT CATALOGUE
SAMPLER CATALOGUE
SINAR BEANPRO CALIBRATION PROCEDURE
COMPLETE COFFEE LAB QUOTE
CLICK IMAGE FOR
DEMONSTRATION
AVAILABLE BLUE
TOOTH OPTION
SAME AS BILL TO
