The BOERNER TYPE Gravity Divider is made to meet F.CI. and B.I.S. Requirements.
Material flowing components are made by a special process to give the unit a smooth finish made without welding or joints.
It is used to reduce the size of a grain/seed sample into two halves, each exactly representative of the original sample.
HOW IT WORKS

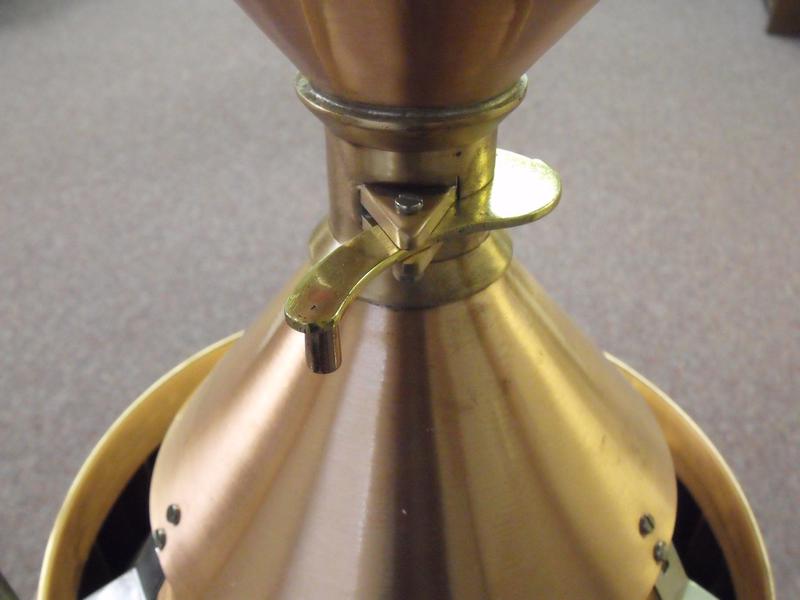

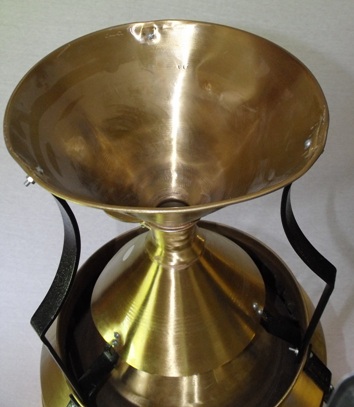

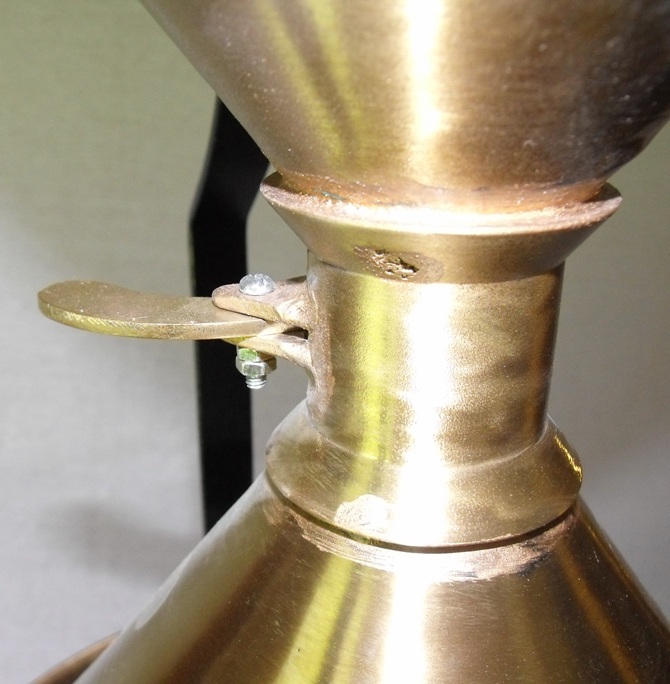

To operate this device, a sample of grain is poured into the hopper and then released down in to the cone which is directly under
the center of the opening.

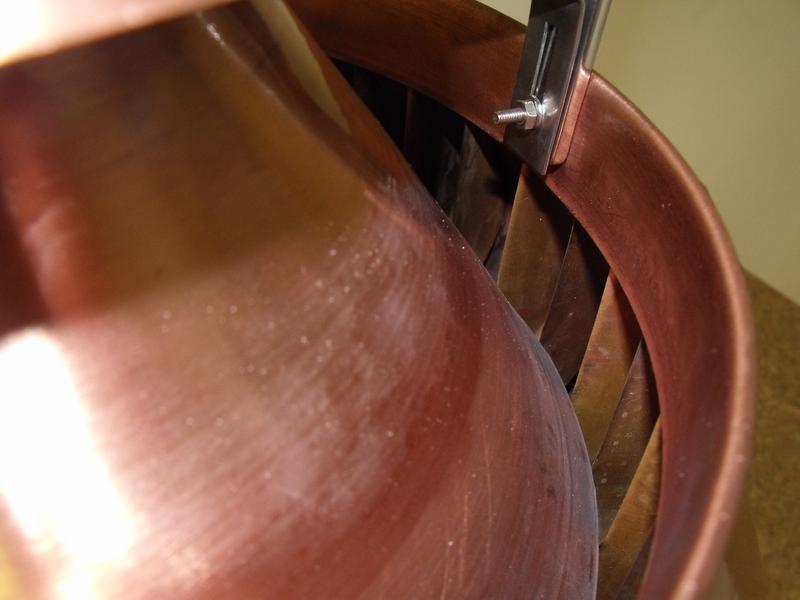

Around the base of the cone are 38 openings or pockets. The grain falling down the sides of the cone is cut into 38 separate streams, rejoining into two streams, which empties into the two pans.
The divider is calibrated to provide accuracy of 1 % between pans on a 1000 gm sample. The body and inner parts are made of copper and brass, eliminating the possibility of rust. The legs and supports are made from steel.

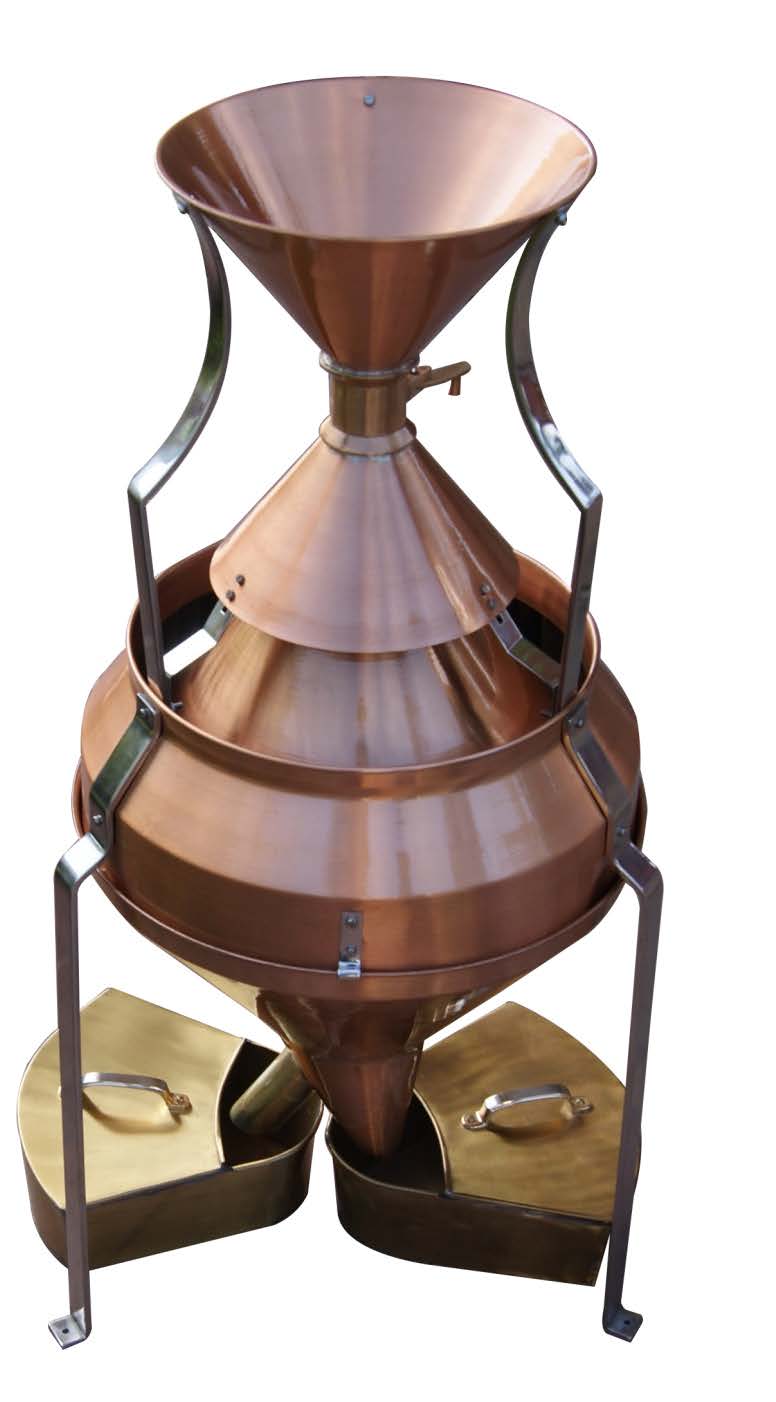

BOERNER TYPE SAMPLE
DIVIDER STOCK# 673 6716
COPPER AND BRASS CONSTRUCTION
Size : 86 cm Height x 38 cm dia (Approx.)
Number of Pockets: 38
Supplied with two brass sample pans.
