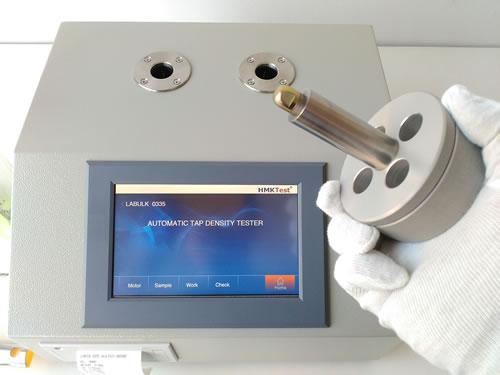

The Tap Density Tester is used to measure the tap density of powders. It consists of touch
panel, printer, electronic balance, tap assembly, motor and glass cylinders. It is is designed to meet all currently known international standards.
The parameters are flexible to set, in order to get standardized results according to the users requirements.
In addition to auto measurement, auto print and auto calculation of tap density, it can also automatically measure the flowability of the powder by the Hausner Ratio and Compressibility Index.

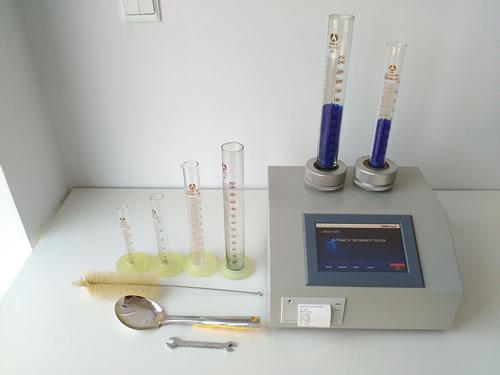

INCLUDEDSTANDARD
cylinder holder
glass cylinder 250 mL
glass cylinder 100 mL
cylinder pad
height rod
cylinder brush
fuse
power cable
tool
sample spoon
HOW IT WORKS

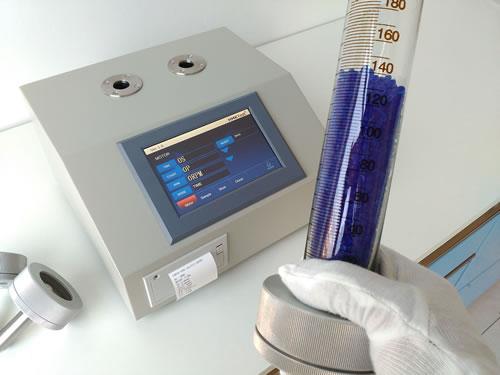

Put the bulk powder into the graduated cylinder, and measure the volume. Fix the cylinder onto the tap assembly.
A cam is driven by the motor at a standardized frequency and height. The cam drives the bottom of the tap assembly to make the cylinder move up and down. The powder inside, reduces in volume relative to the characteristics of the sample. By dividing the mass of the sample by the tapped volume, it calculates the tapped density measurement.
SPECIFICATIONS
Physical Property to measure: tap density,
Hausner ratio, Compressibility Index
Sample Loading Volume: 5-250 mL
Timing range: 0-99999 sec
Counting range: 0-999999
Tap height: 3 or 14 mm
Frequency: 250/300/custom
Measurement: W 33 x D 31 x H23 cm
(Cylinder excepted)
Power: 220V/110V/50/60Hz
Weight: 16 Kgs NET
FEATURES
New generation operating system, with 7” LCD touch panel panel
Automatic communication check between host and modules / accessories.
Alternative testing mode, with programmable tap time or number.
Tap height selection printed on the test report
Programmable rpm frequency.
In addition to SOP tap number, the user can freely set any tap number to meet special requirements.
During the test, all of the set parameters are visible.

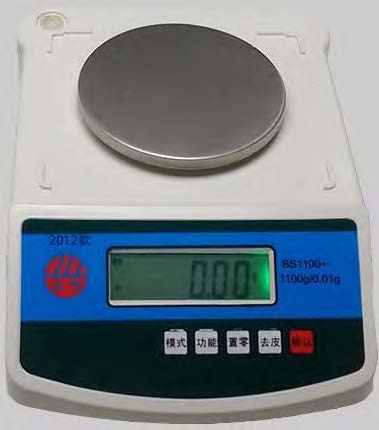

RS-232 connects the host and balance. Weight data is automatically shown on the screen.
Simple touch command to print reports in detail
Flowability readings, such as the Hausner Ratio or Compressibility, are obtained during the measure process
Login status for either Administor or User, is accessed by password, for GMP Compliance
Database storage for test results
Only the administor has the right to change the time, or delete records, GMP compliant
