HIGH PERFORMANCE LABORATORY SAMPLE GRINDER
MICRO HAMMER CUTTER MILL
Suitable for all dry milling applications in the lab and designed with a  powerful motor, an integrated frequency inverter with LED-display, a newly designed milling chamber with exchangeable grinding attachments, and a new base frame with integrated handle.
GLEN CRESTON
MICRO HAMMER CUTTER MILL
Display LED

Dimensions/Weight 251 x 325 x 480
/ approx 12kgs

Environment 0-40 C, 95% rel. humidity

Protection Class IP 20

Certified Standards EMC according to IEC
EN 61000-6-2/EN 61000-6-3

Safety according to IEC / EN 61010-2-51

Motor Type/power 3-phase AC motor

up to 1000W input
up to 600W output

Supply Voltage/frequency
230V / 50Hz or 120V / 60Hz
Kinematika AG is a specialist manufacturer of equipment and machines used for dispersion and mixing.
This professional laboratory grinder/miller can be used for green coffee beans and roasted coffee beans.
          FEATURES
           (Noise Emission (drive only) Lower 70dB(A) at 6,000 rpm) (no load)
           made from hardened stainless steel
PARTICLE SIZING SIEVES

Standard Sizes
.2 mm
.5 mm
.8 mm
1.0 mm
1.5 mm
2.0 mm

CUSTOM SIZES AVAILABLE
ALL RIGHTS RESERVED
589 Rappahannock Drive WhiteStone Va 22578
Tel (804) 435-5522 Toll Free (866) 244-1578 Fax (703) 991-7133
www.coffeelabequipment.com
COMPANY NAME
ADDITIONAL INFORMATION
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
COMPANY NAME
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
BILL TO ADDRESS
SHIP TO ADDRESS
FIRST NAME
LAST NAME
EMAIL
PHONE
QTY                  DESCRIPTION

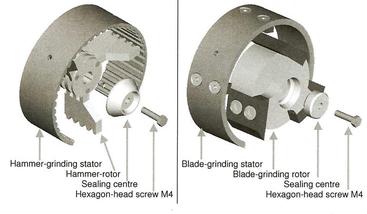

HAMMER MILL ASSEMBLY Consisting of rotor with 3 impact hammers and stator with place for one exchangeable sieve. The impact grinding mill attachment is designed for processing dried, non-fatty, hard and brittle products such as cereals, corn, malt, raw & roasted coffee beans, oats, nutshells, bones, fins (fish), gravel, stone, amber, mortar etc.

BLADE MILL ASSEMBLY Consisting of rotor with 3 attached blades and stator with place for one exchangeable sieve. The blade grinding mill attachment is designed for processing dried, non-fatty, stringy and ductile products such as wood, bark, roots, leaves, straw, cork, dried fruits, dried degreased meal, adenoids, fish, feather, leather, dermis, wool, cotton, leashed paper, coal, turf, dried resins, synthetic materials, fibre glass, plastic pellets, different textiles, felt etc.
QUOTE REQUEST
SIEVE SELECTION
MICRO HAMMER CUTTER MILL BROCHURE
BUY ONLINE

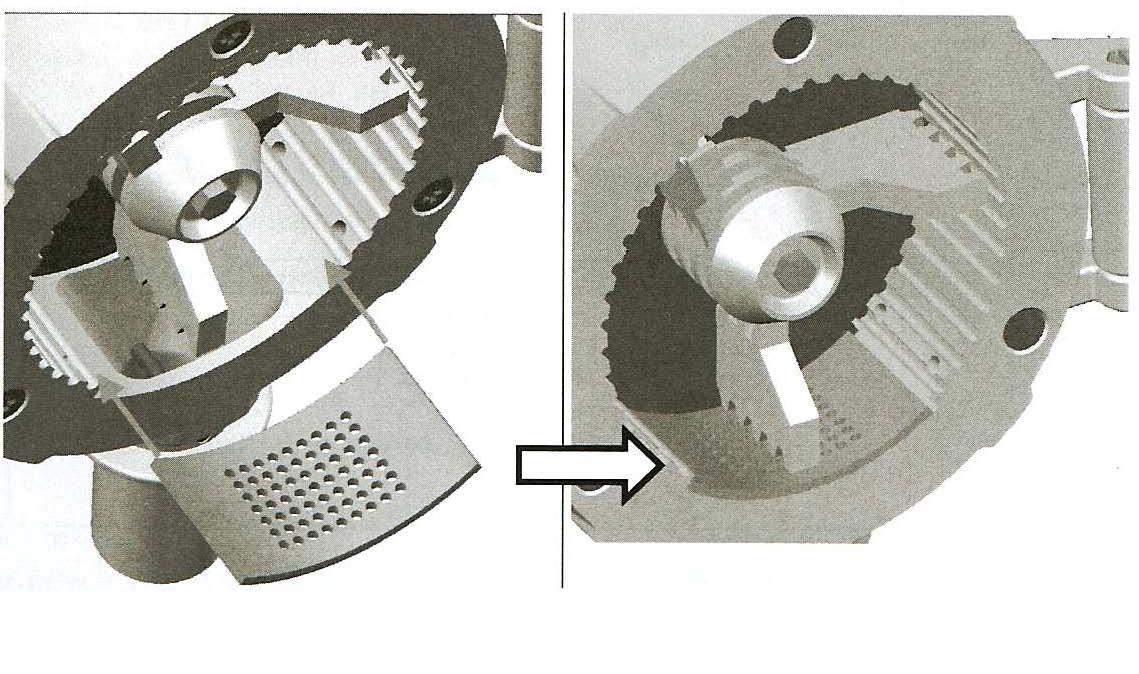

ATTACHMENTS

HAMMER GRINDING ATTACHMENT

BLADE GRINDING ATTACHMENT
Versatile mill can be outfitted with two different rotor assemblies, for different material types. The hammer
mill attachment is most suitable for coffee beans.
HOME
CONTACT US
PRODUCTS
RESOURCES


MOISTURE, PARTICLE CHARACTERIZATION, COLOR, AND SAMPLING
Technical Sales & Support
Telephone (804) 435-5522
Toll Free    (866) 244-1578
Hours         9 AM - 6 PM  EST   M-F

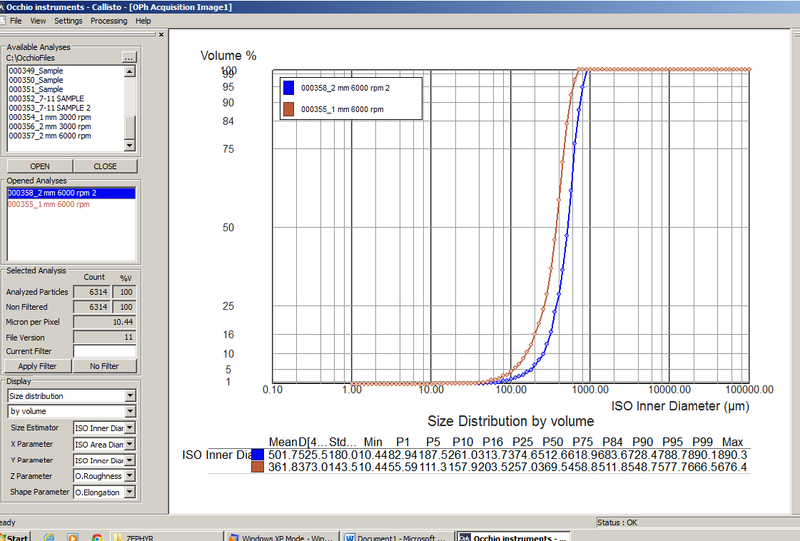

Here a comparison is made using an Occhio Zephyr Digital Imaging Analyzer, between roasted coffee beans ground using a 1 mm sieve, and then the same sample ground using a 2 mm sieve. Size Distributions are narrow,and clearly defined.
Working Volume (funnel)
Approx. 300ml (volume of the funnel)
Even works on rocks!
Speeds up to 6,000 RPM
