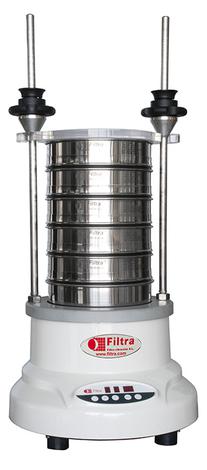

Digital electromagnetic sieve shaker for sieves from 60 to 203 mm in diameter.
Its three-dimensional motion throughout the sieve column makes it extremely
effective when performing particle separation granulometric tests, both dry
and wet. It is manufactured in anodized aluminium with a polyurethane resin shell.

 It features a digital panel with power regulation, sieving time control and
adjustments to enable continuous or intermittent sieving.
The sieve fastening system is fitted with an Easy-Press quick release coupling system (smooth rods and pressurized easy-sliding tightening knobs).
SPECIFICATIONS:

Type of sieve shaker: Electromagnetic
Type of sieving: Dry/wet.
Application: Granulometric separation.
Particle size: From 20 μm to 125 mm.
Product motion: Three-dimensional.
Maximum amplitude: 3,5 mm.
Power levels: 9
Time display: 1 - 99 min.
Interval operation: 1 - 9 s.
Maximum number of sieves:
8 (Ø 60/203 x 50 mm h.)
16 (Ø 60/203 x 25 mm h.)
Sieve diameters: From 60 mm to 203 mm.
Accessories in wet
Voltage: 220/240 V- 50/60 Hz.
Power: 400 W.
Current: 0,8 A.
Weight: 40 Kg.
WET SIEVE KIT
OPTION
3D MOTION
FTL0200 Sieve shaker
Connecting cable
Methacrylate lid
Easy-Press (EP) Clamping System
User manual
CE declaration of conformity

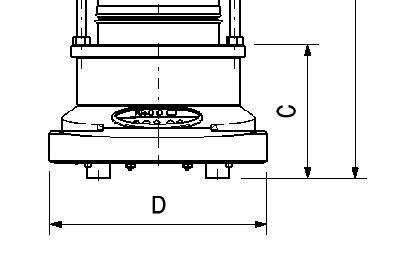

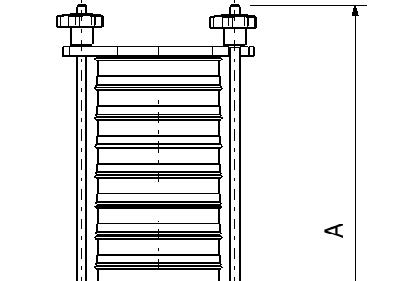

850 mm
254 mm
245 mm
360 mm
HOME
CONTACT US
PRODUCTS
RESOURCES


MOISTURE, PARTICLE CHARACTERIZATION, COLOR, AND SAMPLING
Technical Sales & Support
Telephone (804) 435-5522
Toll Free    (866) 244-1578
Hours         9 AM - 6 PM  EST   M-F
BROCHURE
EASY PRESS CLAMP SYSTEM
What is the significance of granulometry?
Knowledge of the granule dimensions and the distribution according to size of the
particles dispersed in solids is extremely important for research and development,
production and quality control applications.
Based on the granulometric distribution, some of the product properties will vary,such as:

• Flavor
• Absorption
• Conductivity
• Miscibility
• Agglomeration due to cohesion/adhesion forces

Granulometric classification or granulometry is defined as the measurement and grading which is performed on granules or particles of a solid material for analytical purposes, both on its origin and its mechanical properties, and the calculation of the proportion of the corresponding elements for each size on a granulometric scale.

• Mechanical properties
• Fracture properties
• Resistance to wear
• Surface reaction
• Insulation properties
• Filtration properties
The FILTRA electromagnetic sieve shakers are used in research and development, and in quality control for production processes,
both for raw materials and intermediate and finished products.

It is possible to carry out granulo-metric testing for particle separation, both for dry, and wet conditions.
The IRIS model sieve shakers are highly effective, thanks to the three-dimensional particle motion, created by an electromagnet.

With this 3D effect,  the particles bounce over the whole sieve area, forcing them to pass through to the lower sieve more quickly.
Thus a faster, more effective sieving is achieved through the whole sieve column.Ø for samples from 25 gr to 25 kg of product. The particle size to be analyzed can range from 25μ to125 mm. Each user can choose the equipment which is best suited to their needs.
