SELECT HEAT SOURE POWER SUPPLY
Simply fill the weighing pan
with liquid coffee,
and press the test button.
Results are displayed in % H20
Convert to PPM
Percent to ppm conversion
1% = 1/100
1ppm = 1/1000000
So, one percent is equal to 10000 parts-per million:
1% = 10000ppm
DIRECT METHOD TDS
ON/OFF button enables switching on and off the balance’s display. If switched off, balance components other than the display are powered, and balance is in stand-by mode.
F9 button of the computer keyboard.
Direct access to data stored in a database: user, product, tare, drying mode.
F10 button of the computer keyboard.
Function button enabling quick access to settings of an active working mode.
F11 button of the computer keyboard.
Reports – quick access to drying process reports database.
F5 button of the computer keyboard.
Quick access to drying parameters settings (button active only for moisture analyzer mode)
Quick access to sample database
UNITS button for changing measuring units in course of the drying process: %M, %D, %R, g.
PRINT/ENTER button for sending current display status to a peripheral device (PRINT) or for accepting selected value of a parameter or function (ENTER).
ZERO button – zeroing balance indication.
LCD GRAPHICS WITH PICTOGRAMS
ACCESS LEVELS |ADMIN [access levels for editing menu]
KEY SOUND. YES/NO
DATE |2013.05.27 [date settings]
TIME |8:53:00 A [time settings]
GLP AUTOTEST| [carrying out autotest for the balance]
FULL IMPORT EXPORT CAPABILITIES

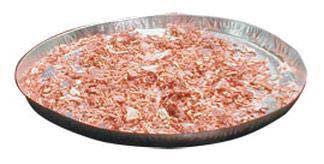

These glass fiber pads greatly inhibit
Every material has unique thermal emission and absorption characteristics.
Emissivity is a measure of the efficiency in which a surface emits thermal energy. It is equal to the amount of thermal energy it can absorb, once temperature equilibration has been attained.
A black body is a material that is a perfect emitter of heat energy and has an emissivity value of 1. Coffee is in the range of .7 to .9

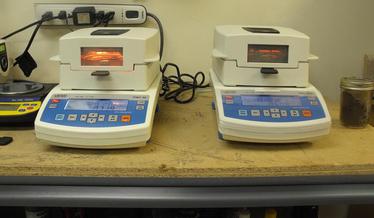

Here you can see a halogen (Short Wave ir), on the left, and next to it an IR Emitter Heat Source (Mid Range IR), on the right. There is a visible difference in the brightness of the light. The IR Emitter Heat Source, is used for coffee application, as it speeds up the process.
SAMPLE SPECIFIC HEAT SOURCE
3 CHOICES AVAILABLE:
HALOGEN - SHORT WAVE IR (EXAMPLE:SUGAR)
IR EMITTER- MID WAVE IR(BEST FOR COFFEE / TEA)
METAL- LONG WAVE IR(FOOD APPLICATIONS THAT SPECIFY NO GLASS)
When using a moisture analyzing balance, care has to be taken to ensure it is equipped with the most efficient heat source.
