SAMPLE SPLITTER GRAVITY  TYPE
Advantages

- Stainless steel with slot widths 6.35 mm (¼") or 12.7 mm (½").
- Ideal for free flowing powders.
- Suitable for use with powder chemicals, food stuff,
  feed, and similar granular material.
- Splits sample to analytical proportions.
- Characteristics of original sample maintained.
ALL RIGHTS RESERVED
589 Rappahannock Drive WhiteStone Va 22578
Tel (804) 435-5522 Toll Free (866) 244-1578 Fax (703) 991-7133
www.coffeelabequipment.com
BUY ONLINE
COMPANY NAME
ADDITIONAL INFORMATION
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
COMPANY NAME
STREET / PO BOX
CITY
STATE / MUNICIPALITY
ZIPCODE / POSTAL CODE
COUNTRY
BILL TO ADDRESS
SHIP TO ADDRESS
FIRST NAME
LAST NAME
EMAIL
PHONE
QUOTATION REQUEST
DESCRIPTION                                                                               REF #

SAMPLE DIVIDER STNLS STL 1/2 " SLOTS (12.7 mm)                      600 SAM LG

SAMPLE DIVIDER STNLS STL 1/4 " SLOTS (6.5 mm)                       600 SAM SM

HOME
CONTACT US
PRODUCTS
RESOURCES

Technical Sales & Support
Telephone (804) 435-5522
Toll Free    (866) 244-1578
Hours         9 AM - 6 PM  EST   M-F

MOISTURE, PARTICLE CHARACTERIZATION, COLOR, AND SAMPLING
APPLICATION SPECIALISTS

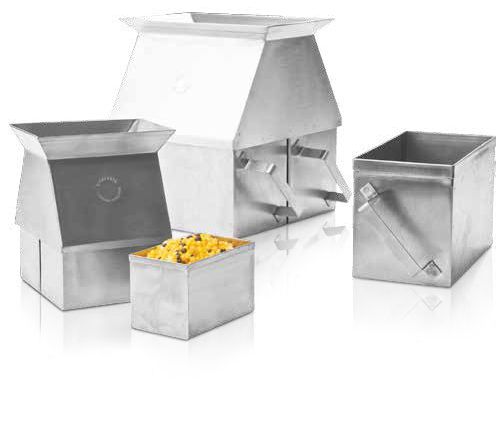

These hand held sample dividers will subdivide material
samples into two smaller portions by a single pass or further
subdivisions can be attained by multiple passes. The important
feature of Endecotts sample dividers is that each
subdivision retains the characteristics of the original sample.
Based on the recommendations of BS 5309 and BS 3406/1.
Produced in stainless steel with slot widths of either 6.35 mm (¼")
or 12.7 mm (½").
SPECIFICATIONS

¼" Sample Divider
Unit consists of Divider plus 3 receiving boxes
12 – slots ¼" wide x 2 7/8" long. 6.35 mm wide
Overall length of Divider body 130 mm
Overall width of Divider body 133 mm
Overall height of Divider body 101.5 mm
Overall length of Divider boxes 98.6 mm
Overall width of Divider boxes 63.5 mm
Overall depth of Divider boxes 52.4 mm
¼" Weight of Unit 1 kg approx.
Volume 0.3 liter

SPECIFICATIONS

Unit consists of Divider plus 3 receiving boxes (with handles)
12 – slots ½" wide x 3 15/16" long. 12.7 mm wide
Overall length of Divider body 229 mm
Overall width of Divider body 216 mm
Overall height of Divider body 133.5 mm
Overall length of Divider boxes 184.2 mm
Overall width of Divider boxes 98.6 mm
Overall depth of Divider boxes 120.7 mm
¼" Weight of Unit 3 kg approx.
Volume 1. liter
