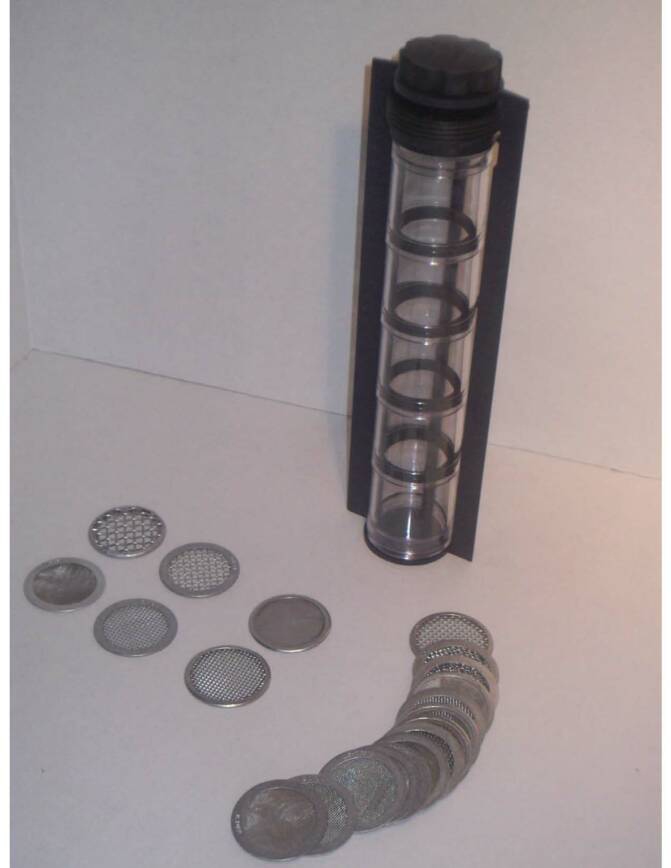

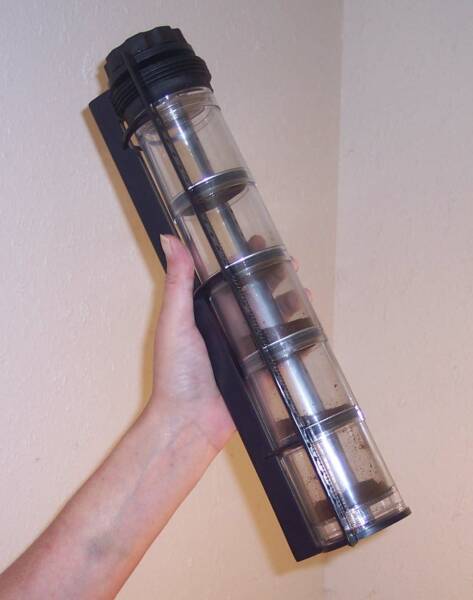

The Coffee Grind Sizer is a manual sieve kit designed to provide a quick visual analysis of coffee grind size distribution. It features twenty stainless steel screens including the standard coffee grind sizes, ranging in size from US sieve No. 12 to 50, plus an additional 14 sieves. The sample is placed into the top of the five clear acrylic cylinders, then shaken to distribute the coffee particles.
For an actual detailed grind analysis, a sieve shaker is required, but for a quick check to ensure that the amount of fines passing the #30 sieve, don't exceed 24% (*COFFEE:AN EXPORTERS GUIDE Geneva 2002)
as this may cause bitterness, the Grind Sizer can be a useful tool, especially for use in remote locations and cafe's, where a sieve shaker isn't practical.
FEATURES
• Improved frame design for easier operation
• Lightweight and portable
• 19 interchangeable sieves with stainless steel mesh

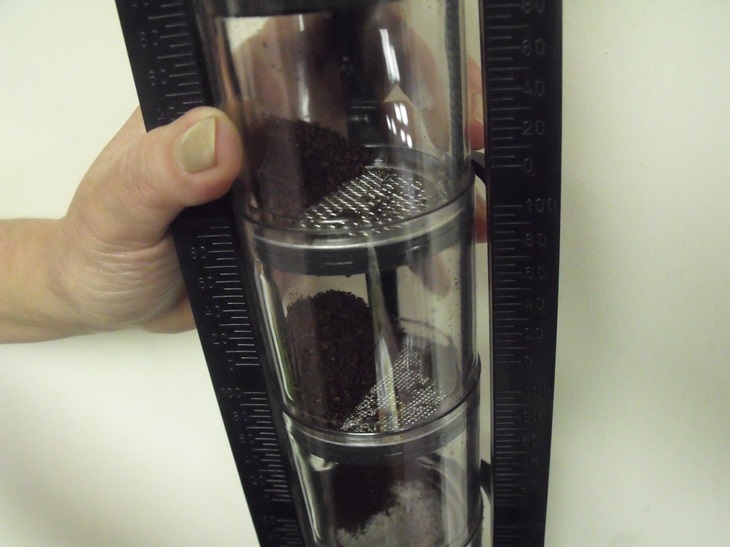

• Indication of volumetric percentages on the shaker frame
• Clear 2” I.D. acrylic cylinders 1.85" long
• ABS Plastic frame ( 4" I.D. and 14.5" long)
